Week 15: Final Presentation Project 3

Week 15 concluded DAB510. My Final Summary Board is below:

My presentation is located at the Prezi website: http://prezi.com/udzmoncojldl/the-mangrove-metaphor/

I felt that as part of my presentation due to time constraints i was unable to explain my mangrove metaphor as much as i would have liked. Our guest tutor at the end of my presentation gave feedback, she believed that my mangrove concept was represented in the 2D (seen in diagramming) but wasn't successful in 3D.

I'm not sure i agree with this. I believe reasons this may not have been understood by the tutor is that i was unable to describe the space planning exercises i under took earlier in the design process. The three dimensional root structure was considered when planning each of the floors and spaces.

I also believe i was not able to portray in my presentation the link between the purpose of the building and mangroves informing structure. As mangroves were identified as a plant unique to the subtropical climate and one which has adapted to the constant flux of seawater (flooding) i found it particularly appropriate as part of the theme learning from nature.

Adaption was part of the concept of my original folie design, mangroves adapt and survive in flood waters, that which lives in a subtropical climate, such as Brisbane. The roots were used to lift the building from the ground, lessening the affects of potential flooding and the root structure also used to segregate space. You can see on the 3D images that the angle and direction of the concrete 'roots' was used to separate glass and concrete on the outside of the building.

Another issue addressed by our guest tutor in the presentation was site selection. I was questioned why my building was to be where it was opposed to any other site. I believe reasons for site placement were:
-similar location to folie site which had been chosen to accentuate views of Kangaroo Point, the city and story Bridge. I also wanted to keep a link between my site and the mangrove trees on the opposite side of the River. This is so people in the building would understand the inspiration.
- I had considered placing the building closer to the water or perhaps with some roots going into the water. When discussing this with my tutor Yvonne, it was decided not to keep the building very close to the water as the ground floor of the building was intended to be a public gathering place and placing this so close to the water could have been hazardous. However, i could have explored the addition of platforms into the water.
- The other reason for site placement was a need for there to be a strong link to the city and the architectural establishments identified as part of site analysis. Seen in the master plan is a large stair case that links the building to Bowen Terrace.

Week 14: Preparing Presentation

Building form has been finalised and renders have been finished, currently images to be used in the presentation will be:

Ground axonometric

First Floor axonometric

Second Floor Axonometric

Third floor axonometric

The materials used in my design are limited to wood, concrete and glass to have a more neutral palette, and I think i have been able to achieve this, especially noticeable in the interior images. I think this works well with the learning from nature theme and i will continue the neutral palette within my presentation.

I believe the interior of my design is just as important as the exterior to continue the intended palette mentioned above. This is why i will used axonometric floor plans in my presentation.

Week 13c: Presentation Outline

Currently design development looks like this:

As the design development is coming along, i thought i should consider my presentation and what images i will be needing so i can focus on that. So far, this is an outline of images I believe I will need for my final presentation.

Slide 1: Titles
Slide 2: folie design images

Slide 3: site analysis – determining site issues diagram

Slide 4: typology of users surrounding site – nolli residential vs. Commercial diagram

Slide 5: architeactural community relative to site diagram

Slide 6: Introduce theme

                ‘Nature as model, mentor, measure’

Slide 7: Mangrove metaphor images

Slide 8: Solution: HSW Design Proposal (developing brief)

                ‘Nature as mdel.. mangroves,

                Nature as mentor... flooding,

                Nature as measure... sustainability.’

Slide 9: Brisbane City Sustainable Learning Centre – Masterplan. Explain access to site for intended users

Slide 10: Exterior shots – inviting users to space

Slide 11: Entering building – interior image of appraoch to stairs on ground level

Slide 12: Axonometric ground floor + overlay circulation

Slide 13: Axonometric level 1 plan + overlay circulation

Slide 14: Internal perspective level 1

Slide 15: Axonometric level 2 plan + overlay circulation

Slide 16: Internal perspetive level 2

Slide 17: Axonometric level 3 plan + overlay circulation

Slide 18: Internal perspective level 3

Slide 19: Material/tectonic  - section

Week 13b: Design Development

During Week 13 Tutorials, the main concern of my Tutor, Yvonne, was that the mangrove metaphor wasn't 'strong' enough. After showing her sketch designs such as this [Wk 12 elevation sketch] it was obvious that i haven't transformed the strong structural features of the mangrove branches into the design. Therefor, I need to work on my facade design more so that i accentuate the branches as a strong structural feature. Yvonne recommended looking at Toyo Ito's Tod building for inspiration...

Toyo Ito Tod's Building. Accessed from http://www.busyboo.com/2009/01/25/toyo-ito-tods/ June 1, 2012. In the next phase of design development I will have to work on the facade so it possesses more of a strong structural building.

The Yellow Treehouse by Pacific Environment Architects.  http://cubeme.com/blog/2009/06/10/yellow-tree-house-new-zealand-by-pacific-environment-architects/ accessed June 1, 2012.

Whilst researching I also found this image. I feel like these buildings well describe the intimate learning spaces I am trying to create with the softer curves within the interior of my building. Yvonne also did suggest bringing the curve language to the outside of the building, but I feel like i want to keep a contrast between the strong structural column elements on the outside of the building, and the soft curved panels forming smaller intimate spaces within the building separate elements. This is why I have also begun the curved language from underneath the building, surrounding the stairs which invite people into the middle of the building. From afar, they are confronted with the strong straight structural columns, and as they enter underneath the building, the curved panels create curiosity before they enter into the first level where the smaller spaces are contrasted.

Though I will explore using the same curved language around the site, perhaps in flat panels that cascade outwards at different heights to creating seating areas.This is partly because we also need to consider our masterplan, site and site access.

During the next week, our tutor would like us to develop our Masterplans and diagrams to be used in the final presentation.

 Development of the root structure on the outside of the building currently looks like this...

 I am already feeling that this is more reminiscent of a mangrove root structure. The 'roots' are made of curved concrete panels which are approximately between 200mm and 1000mm wide. I plan on further developing the roots and adding smaller ones that will break up the many faces of the building, which then can be used as 'frames' for either concrete or glass panels, depending on views to be either shown or not. This part of the process will need to involve the site.

Week 13: Resolving Design

This week is the last week before presentations in Week 15, and the last chance to speak with Tutors regarding design. So, in order to gain the most feedback design is to be as resolved as possible.

So far, the design looks like this:

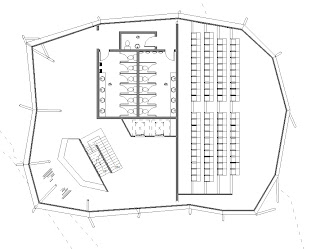

First Floor

Second Floor

Third floor

Though, apart from discussing design form, I also have other questions that I would like to discuss with the Tutor.

These include:

- Confirm the focus of the building be a 'Sustainability' Centre (learning about sustainable design) or 'Subtropical' centre (learning about the Subtropical climate in which Brisbane exists.

- Confirm what is to be on the summary boards and what should be on the powerpoint presentation. Detail drawings on summary boards and 'experiential' images on powerpoint maybe?

- How long will presentation go for?
- Discuss site placement. Building is intended to go near water due to mangrove structure and (mimic natural placement along water's edge) but underground area is also intended for public use - so will i need barriers to water? Discuss site placement with tutor
- Also discuss access to building.
- Office and auxiliary spaces have all been moved to second level of building - public spaces on first floor and second floor mezzanine. Office auxiliary spaces are to include kitchenette - should i consider placement of a small cafe for public considering there is none arc close to area?
- As top level of building is for store and services which is located at back of level - consider opening up the from to the level to be open air? Could continue either root 'columns' or panel language to create public function area?

Week 12: Realising Design

During week 12, Yasu completed his 'Design Discussion', further defining 'Experience,' 'Theme,' and 'Communication' as part of the assessment criteria for Project 3.

Experience:
- Needs to emphasise how users will utilise space
- Don't just include hero shots - also show inside of building - make sure the people shown are relevant
- Will need to show urban fabric (background)
- Need to be able to make Tutors feel like they are experiencing the building
- Plan sequence of images for presentation to tell a story (and make sense)
- Important images: Hero shot and internal perspective
- Model can be used to place model people and take photos

Theme:
- Defined by tutorial group 'Learning From Nature'
- Nature as a model, mentor, measure.

Communication:
- We will need to communicate progression of development in presentation - starting with Folie.
- 1 x A1 Summary Board of Final Design (printed not mounted)
- Digital Presentation
- Other artefacts such as models, hand drawings are to be put onto blog
- Attention to detail is important.

Yasu made a note of explaining that it important to give your final presentation a considerable amount of thought before the due date. He also added that considering what is to be included in the presentation will be helpful in directing what needs to be worked on.

What I believe will need to be included as part of my presentation at the moment is:

Folie Design - Learning from Adaptation

Site Analysis and Problems

The Mangrove Metaphor

Programme for building

Theme Group: Learning from nature

Nature as a model

- Mangroves informing structure

Nature as a mentor

- The ability of mangroves to be resilient to flooding

- Site Analysis: flooding in the area

Nature as a measure

- Learning about Sustainable Design

- Site Analysis: Architectural practices surrounding HSW

HSW Subtropical Learning Centre

- Site plan

- Resolved Design

- Experiential Images

I will be putting this presentation together via a website called Prezi. This can be viewed at http://prezi.com/udzmoncojldl/the-mangrove-metaphor/

After discussion with my tutor and further consideration, there are still things that need to be considered in respect to design. These include:
- Considering making walls more square. This is compared to an organic shape. See which is most aesthetically pleasing.
- Consider using the same 'language' of interior mangrove panels to create stairs which elevate and separate learning spaces.
- Consider main facade which consists of mangrove silhouette and branches continue into building
- Consider grouping all office space above lecture hall to free up front public space for the creation of separate levels which are linked to mangrove panel language - mimic branches in organisation?

Week 11: Design Development

In Week 11, the Assessment criteria terms 'Presence' and 'Tectonic' were discussed as part of 'Design Discussion'. In order to address these criteria, I have interpreted that our final presentation of Project 3 is to include and consider:

As part of PRESENCE:

- A set of diagrams that describe the background issues of the site and why the project is important to the surrounding community

- A description of influencing contextual relationships and factors on the project to be described - in my case, the Brisbane subtropical climate, in particular, mangroves influencing form and structure

- An understanding of past and present of the site and within the community - in my case, how the floods have affected the city and community of Brisbane

- An understanding that there are values present in the area and this can inform needs, and these needs are to be well defined and will form a concept of what is required in the area. For my project this is the need for a communal learning centre and central meeting place for those involved in the architectural community.

- How the building is seen in differing seasons, or contexts - collecting materials and showing realistic photomontages will be important to achieve this

- Must be able to tell a story of the final presentation which begins with the folie and finishes with final design.

As a part of TECTONIC:

- Consider how the building is developed (building development) and formed (building form), must be able to describe the design decisions made. This should be able to be done throughout the use of images or diagrams rather than spoken word.

- During the design process people need to be considered as most important and how they will interact with the building.

- Circulation - demonstrated in simple diagrams. It needs to be considered that there may be several different types of circulation to be communicated

- Function - if the building consists of adaptable spaces, it needs to be demonstrated how they will occur and be used. Function should to an extent influence the way you design

- Components - consider simplified exploded views of the building to understand how it comes together

- Sections and plans are important to show texture

- Details are needed for key aspects of the design, which can be determined with tutor. They are needed to show you have considered important elements.

- Physical model can be helpful for sketches.
